TVLOGIC RKM-290A

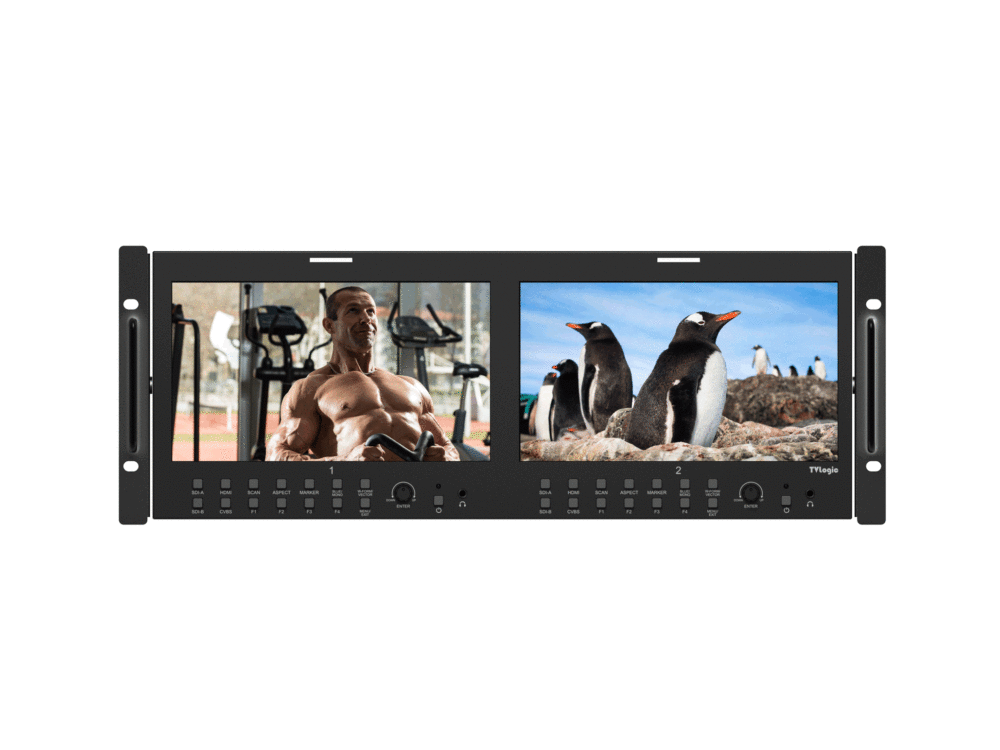

TVLogic RKM-290A. A brand-new rack-mount monitor with 2 × 9″ LCD screens. which has the same high performance display as LVM-095W-N with full HD resolution and wide viewing angle capability. It supports SDI in/out and HDMI input.

Display Spec

•  Size 9″
•  Resolution          1920 X 1080 (16 : 9)
•  Pixe Pitch            0.1035mm
•  Color Depth       16.7M
•  Viewing Angle  176°(H) / 176°(V)
•  Luminance         400cd/m2
•  Contrast Ratio  750:1
•  Display Area      199(H) x 112(V) mm

Input

•  1 X BNC               Analog Input (Composite)
•  2 X BNC               3G-SDI A/B Channel Input
•  1 X HDMI            HDMI Input

Output

•  1 X BNC               3G-SDI Output

Audio

•  Audio In               Embedded Audio/Analog Stereo (Phone Jack)
•  Audio Out           Analog Stereo (Phone Jack), Internal Speaker(Mono)

FPGA Functions

•  1:1 Pixel Mapping Modes for SD/HD,  3G-SDI Level A/B,  Audio Level Meter Display,  Blue Only,  Focus Assist,  H/V Delay,  Key Lock,  Luma(Y’) Zone Check,  Marker,  Mono,  Range Error,  Time Code Display,  UMD,  Various Scan Modes,  Waveform/Vector,  Zoom

Closed Caption

•  CC-608 ANC,  CC-608 LINE 21,  CC-708

Other Functions

•  USB Firmware update by USB cable Firmware update by USB memory stick
•  Ethernet Control support
•  Conversion SDI-to-SDI,
