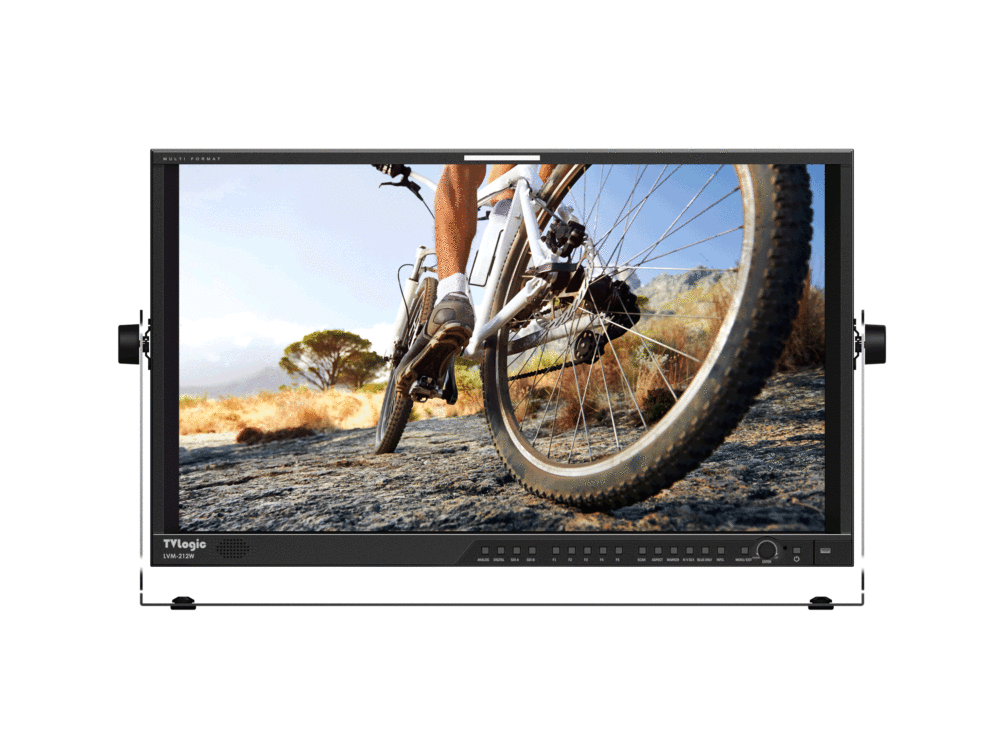

TVLOGIC LVM-212W

TVLogic LVM-212W. LVM-212W is an ideal rack-mount monitor for video wall in control rooms and OB Vans. Inside the beautiful slim bezel design that just fits into a 19” rack, integrated the wide viewing angle LCD panel with native Full HD resolution and 16.7M colors and TVLogic’s unique video processing technology that enables high picture quality 3G-SDI and all the professional features.

Display Spec

•  Size        21.5″
•  Resolution          1920 X 1080 (16 : 9)
•  Pixe Pitch            0.2475mm
•  Color Depth       16.7M
•  Viewing Angle  178°(H) / 178°(V)
•  Luminance         365cd/m2
•  Contrast Ratio  1000:1
•  Display Area      475(H) x 267(V) mm

Input

•  1 X BNC               Analog Input (Composite)
•  3 X BNC               Analog Input (Component)
•  2 X BNC               3G-SDI A/B Channel Input
•  1 X HDMI            HDMI Input
•  1 X DVI                 DVI Input

Output

•  1 X BNC               Analog Output (Composite)
•  3 X BNC               Analog Output (Component)
•  1 X BNC               3G-SDI A/B Channel Output

Audio

•  Audio In               Embedded Audio/Analog Stereo (Phone Jack)
•  Audio Out           Analog Stereo (Phone Jack), Internal Speaker(Mono)

FPGA Functions

• 3G-SDI Level A/B,  Audio Level Meter Display,  Blue Only,  Focus Assist,  H/V Delay,  Key Lock,  Luma(Y’) Zone Check,  Marker,  Mono,  Range Error,  Time Code Display,  UMD,  User Aspect,  Various Scan Modes,  Waveform/Vector,  Zoom

Closed Caption

•  CC-608 ANC,  CC-608 LINE 21,  CC-708,  OP42,  OP47

Calibration

•  TVLogic Color Calibration Utility

Other Functions

•  REMOTE TVLogic’s specification
•  USB        AUTO Calibration Firmware update by USB cable  Firmware update by USB memory stick
•  Ethernet Control support
•  Conversion          SDI-to-SDI,
