Science Image – NDI HD Mini – bi-directional NDI 3G-SDI encoder & decoder

NDI HD Mini by Science Image is a bi-directional Full NDI encoder & decoder with 3G-SDI in/out up-to 1920×1080 60p and HDMI in/out up-to 3840×2160 30p. Harnessing the full capabilities of NDI, NDI HD Mini can utilise PTZ remote control, PoE, tally signals, crew comms/intercom & more!

As an encoder, NDI HD Mini takes any 3G-SDI (1920×1080 60p) or HDMI (3840×2160 30p) signal and converts it to Full NDI’. Once converted, the NDI source can be used with software including vMix and many, many more! In decode mode, any NDI signal on the network can be output from NDI HD Mini to both 3G-SDI or HDMI signals – perfect for IMAG projectors or screens.

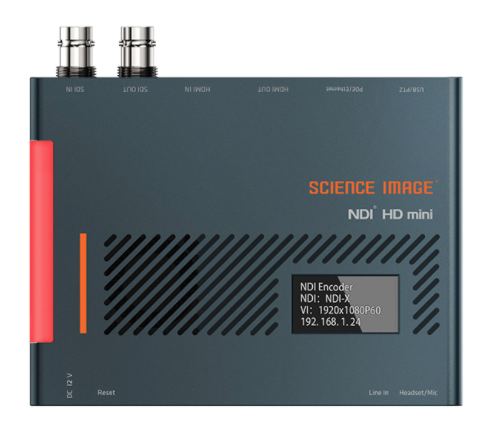

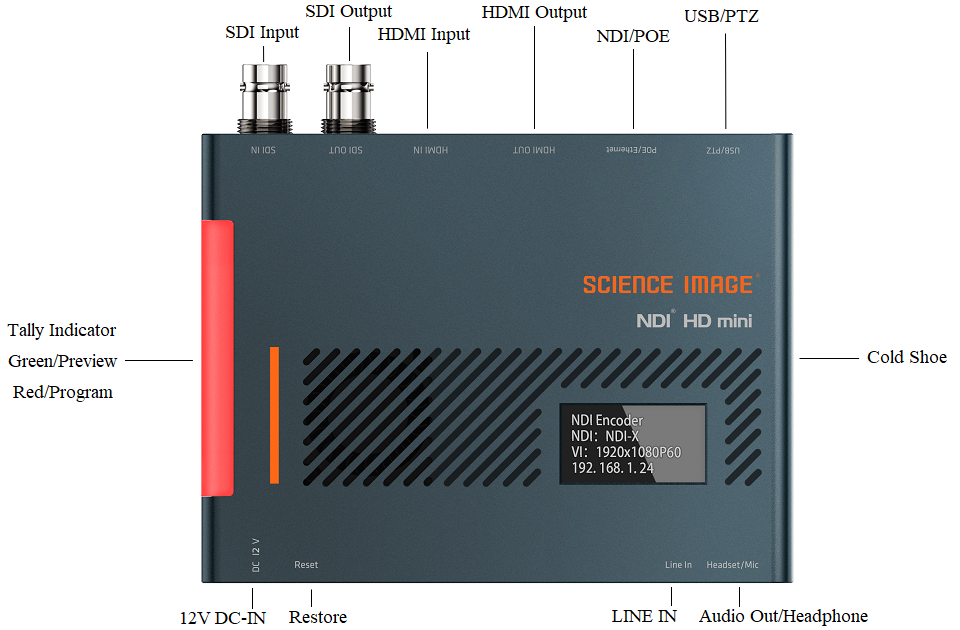

NDI HD Mini has both 3G-SDI and HDMI inputs/outputs which support lossless bi-directional conversion between the two connector types! A handy on-device OLED screen displays the current status, including decode/encode mode and resolution of signal.

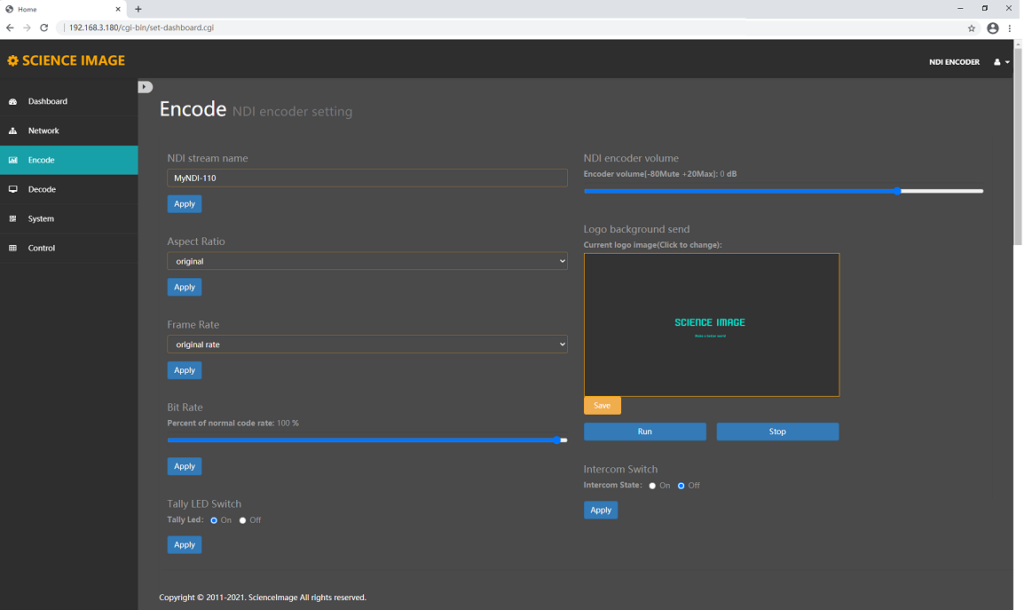

Device settings are controlled over the network using any web browser. Browser-based GUI displays all settings, as well as the current status.
