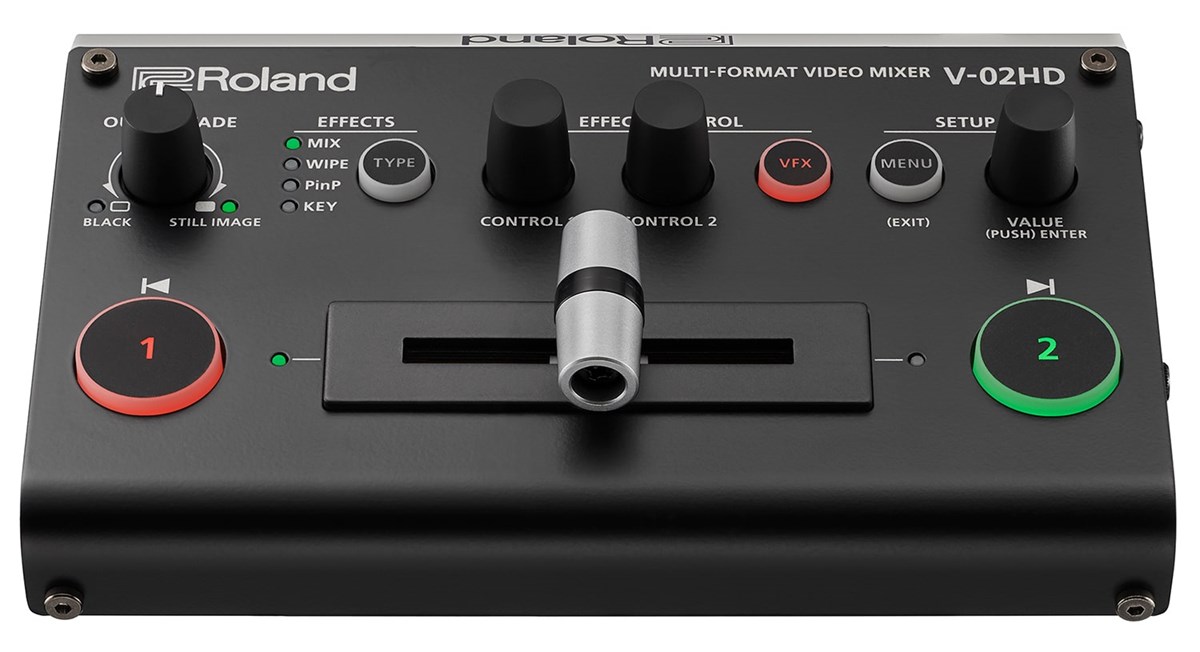

Mikser ROLAND V-02HD

Przetwarzanie wideo:
4:4:4 (Y/Pb/Pr), 10-bit

Wejścia wideo:
INPUT 1--2: HDMI type A x 2* HDCP Supported * Multi-format Supported

Wyjścia wideo:
PROGRAM OUT: HDMI type A
PREVIEW OUT: HDMI type A
* HDCP Supported
* Multi-format Supported

Formaty wejściowe:
480/59.94i, 576/50i, 480/59.94p, 576/50p
720/59.94p, 720/50p, 1080/59.94i, 1080/50i
1080/59.94p, 1080/50p
VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)
WXGA (1280 x 800/60 Hz), FWXGA (1366 x 768/60 Hz)
SXGA (1280 x 1024/60 Hz), SXGA+ (1400 x 1050/60 Hz)
UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to CEA-861-E, VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60 Hz: Reduced blanking
* The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz).

Formaty wyjściowe:
480/59.94p, 576/50p
720/59.94p, 720/50p, 1080/59.94i, 1080/50i
1080/59.94p, 1080/50p
SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)
WXGA (1280 x 800/60 Hz), FWXGA (1366 x 768/60 Hz)
SXGA (1280 x 1024/60 Hz), SXGA+ (1400 x 1050/60 Hz)
UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
* Conforms to VESA DMT Version 1.0 Revision 11.
* The output refresh rates of 800 x 600--1400 x 1050 are 75 Hz when the unit’s frame rate setting is 50 Hz.
* 1920 x 1200/60 Hz: Reduced blanking

Efekty wideo:
Transition: CUT, MIX (DISSOLVE), WIPE (9 types)
Composition: PinP (SQUARE, CIRCLE, DIAMOND), KEY (Luminance Key, Chroma Key)
Visual Effects (14 types): MOZAIC, WAVE, RGB REPLACE, COLORPASS, NEGATIVE, COLORIZE, POSTERIZE, SILHOUETTE, EMBOSS, FINDEDGE, MONOCOLOR, HUE OFFSET, SATURATION OFFSET, VALUE OFFSET
Others: Flip horizontal, Flip vertical, Still Image Capture, Still Image Playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output

Przetwarzanie audio: 24 bits/48 kHz
Format audio: Linear PCM, 24 bits/48 kHz, 2ch
Wejścia audio: INPUT 1--2: HDMI Type A x 2 , AUDIO IN: Stereo miniature type

Wyjścia audio:
PROGRAM OUT: HDMI type A
PREVIEW OUT: HDMI type A

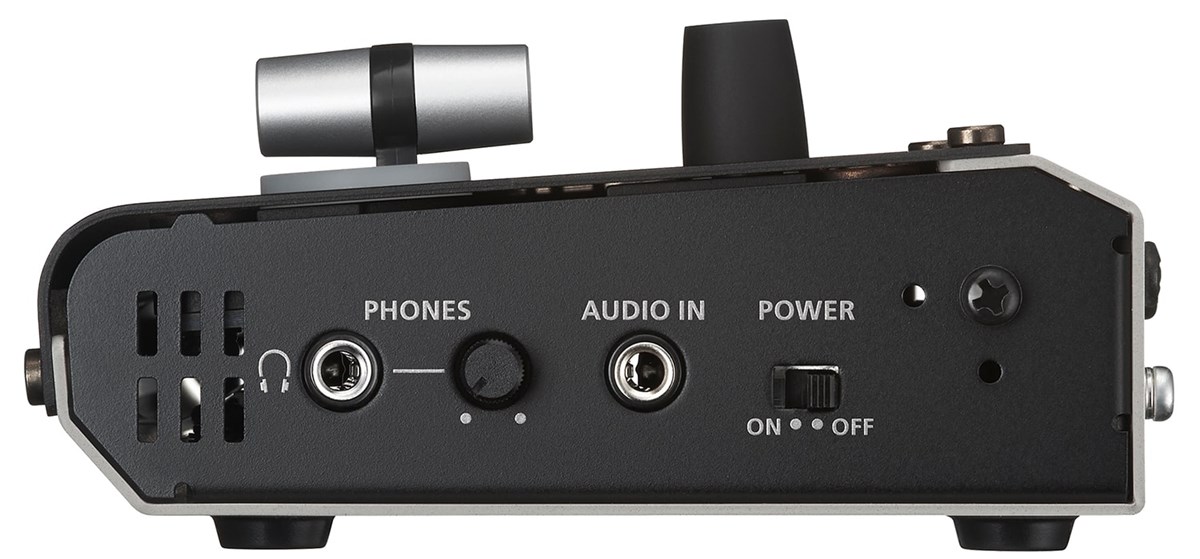

PHONES: Stereo miniature type

Poziomy wejściowe audio:     AUDIO IN: -10 dBu (Maximum: +8 dBu)
Opór wejśćiowy: 45k OHm
Poziomy wyjśćiowe audio:     PHONES: 92 mW + 92 mW (32 ohms)
Opór wyjściowy:     PHONES: 10 ohms

Efekty audio: Delay, High pass filter, Compressor, Noise gate, Equalizer, Multi-band compressor, Limiter, Test tone output

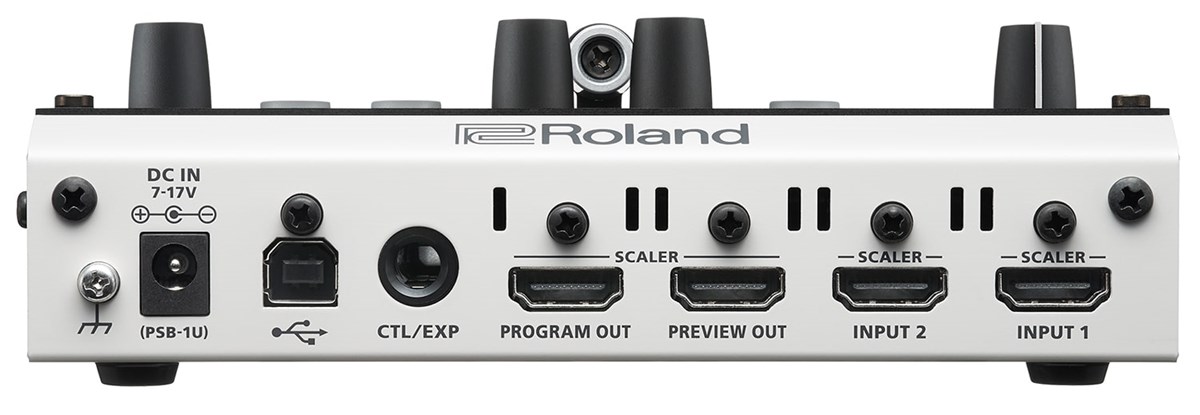

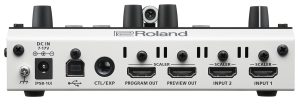

Pozostałe złącza :  USB (for backup from PC)
TRS 1/4" - dla zewnętrznego przełącznika, kontrolera

Pozostałe funkcje:
Preset Memory (8 types)
Panel lock function
EDID Emulator
Auto Scan
Auto Input Detect

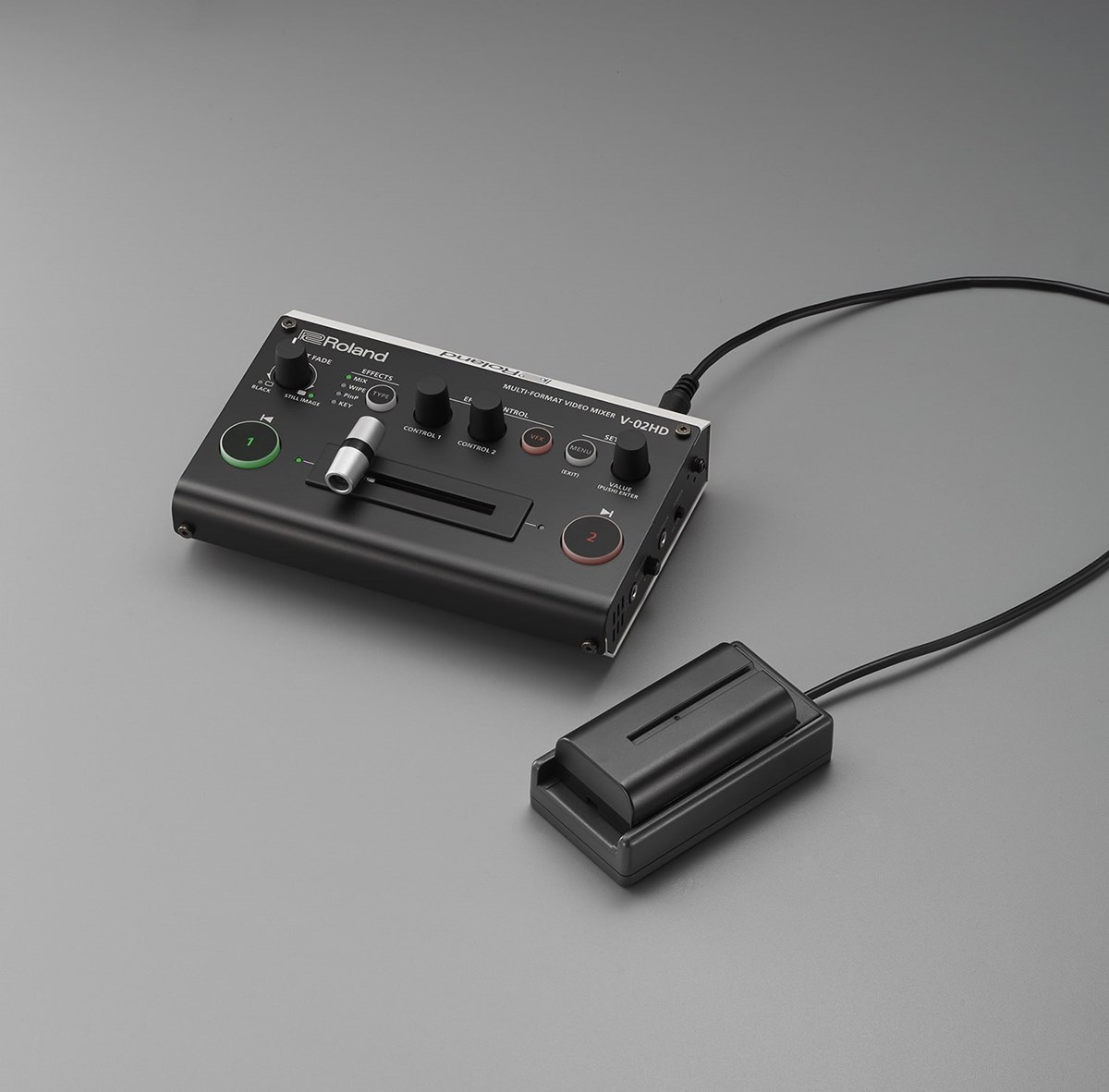

Zasilanie - zasilacz , lub opcjonalny adapter do zasilania akumulatorami

Wymiary : 160 (W) x 108 (D) x 51 (H) mm
Waga: 0.6 kg

Akcesoria opcjonalne:

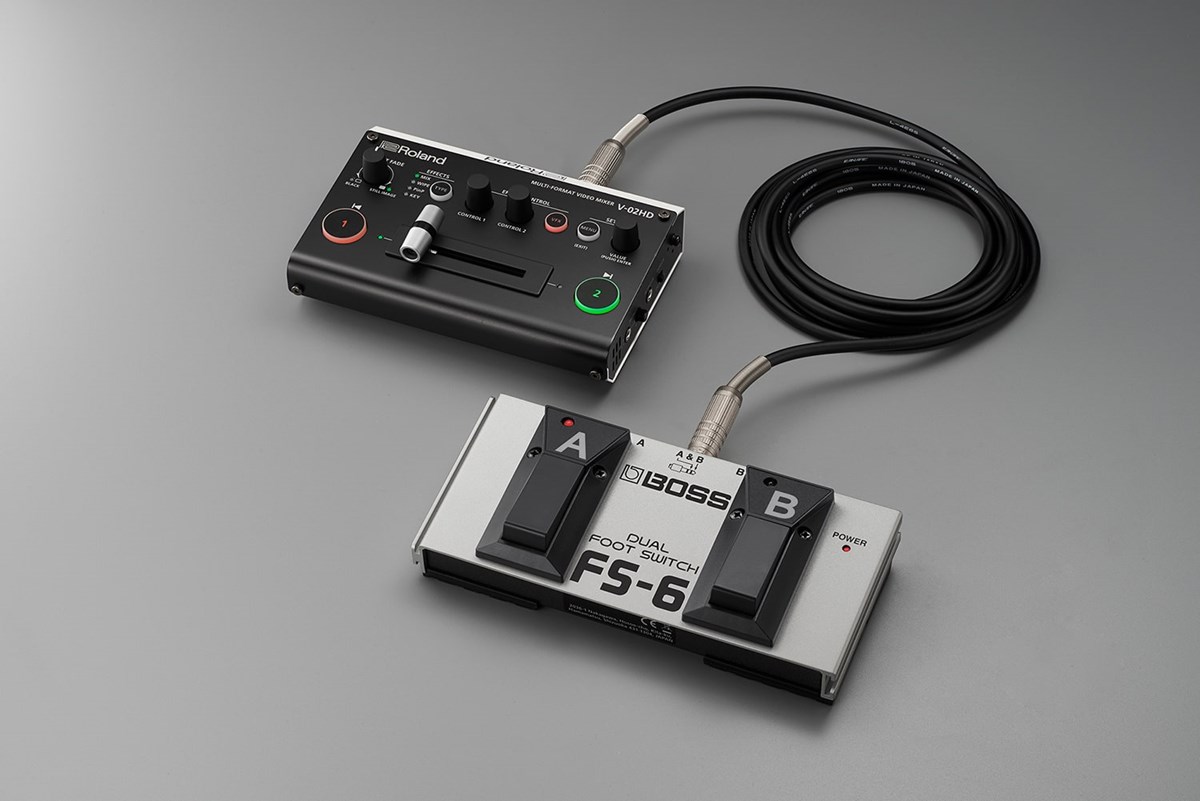

Footswitch: BOSS FS-5U, FS-6, FS-7
Expression Pedal: EV-5, BOSS FV-500L, FV-500H
