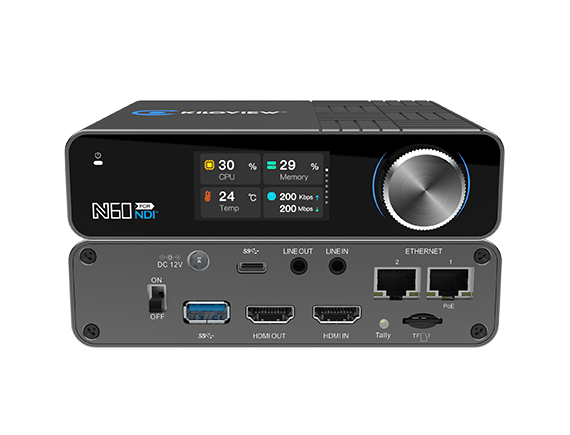

Kiloview N60 Bi-directional 4K HDMI/USB to NDI converter

1. Access a Web Camera via USB 3.0 Type-A as a video input source for encoding;
2. Connect to your PC via USB 3.0 Type-C as a USB video input;
3. Control PTZ Camera via USB expansion.

With USB extensions available, you can achieve unlimited possibilities by seamlessly bringing NDI technology to your applications such as video conferencing, image processing, PTZ camera control, and more.

With ultra-low end-to-end latency, KILOVIEW N60 is a powerful bi-directional converter that supports every second of your 4K video transmission over IP.

• Encoding 4K HDMI/USB video signal into NDI or NDI|HX stream.
• Decoding NDI or NDI|HX streams into HDMI.
• Loop-out for view on a monitor or projector.

Large-sized Color LCD Screen and Scroll Wheel

As an upgrade of KILOVIEW N6, N60 is designed for better user experiences.A big color LCD screen and a scroll wheel enable you to customize settings, switch on/off, set quick shortcuts, and control all video sources with preeminent ease.At the back of the N60, there is a built-in small tally to show the status.

Audio and Intercom

KILOVIEW N60 supports an extended USB audio interface (e.g., USB headset), to let you have end-to-end real-time intercom among the KILOVIEW devices operators and the associated KILOVIEW Intercom System (KIS) group.

PTZ Control

KILOVIEW N60 supports PTZ control through USB to serial RS-232/RS-485/RS-422.N60 also adopts Network control protocols (such as Sony Visca/PELCO-D/PELCO-P) for external PTZ control.

Power Supply: PoE and DC

KILOVIEW N60 has 2 interfaces of Ethernet, one supports PoE（IEEE 802.3AT）power supply.Just plug in a network cable, and you can easily access both the power supply and network transmission.It also supports DC 12V power supply and can easily power the device with a portable charger or camera battery.

TF Storage

The N60 provides a TF storage extension that eases your recording of encoded NDI video directly into a TF card (local recording supports MOV. format).TF storage guards your recording and prevents you from losing video frames caused by network delay, network interruption, or fluctuation.

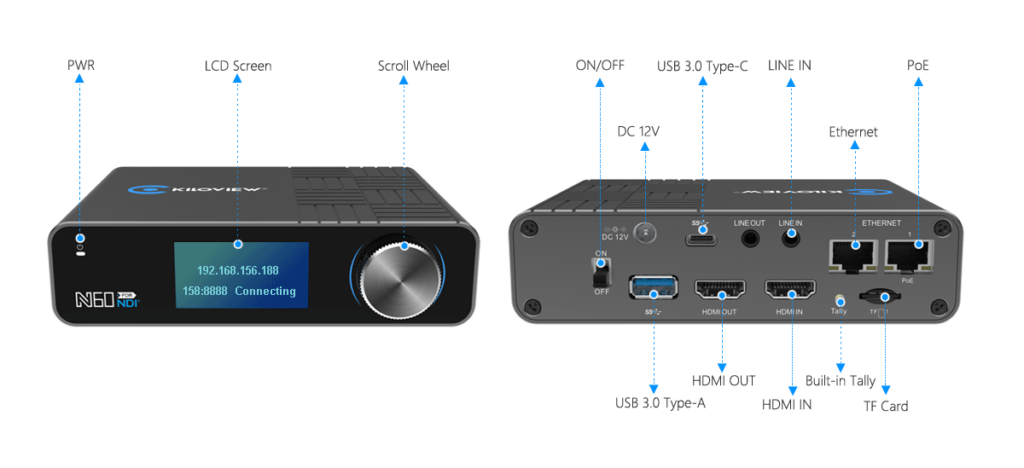

N60 Appearance

Full NDI Bandwidth Requirement

Resolution	4KP60	4KP30	1080P60	720P60
Default Bitrate	250Mbps	200Mbps	125Mbps	90Mbps

Parameters

Model	N60
Video input	1*4Kp60 HDMI 2.0
Video output	1*4Kp60 HDMI 2.0（Loop or decoding output）
Audio port	1*3.5mm Line in 1*3.5mm Line out
Network	2*RJ45 1000Mbps Ethernet port Ethernet 1 with PoE (IEEE 802.3AT, 24W Max)
Video resolution	Input: up to 3840×2160 60fps (4Kp60), lowest 720p50 Output (decoding or loop out): up to 3840×2160 60fps (4Kp60), lowest 720p50
NDI® codec capacity	1x NDI® FB/HX encoding or 1x NDI® FB/HX decoding
NDI®CODEC feature	SpeedHQ (NDI CODEC): SHQ0, SHQ2 ISO MPEG-4 Part 10: Advanced Video Coding (AVC)/ITU H.264 ISO MPEG-H Part 2: High-Efficiency Video Coding (HEVC)/ITU H.265 AVC (H.264): Baseline, Main, High, High10, High 4:2:2 up to 5.2 level HEVC (H.265): Main, Main Intra, Main10, Main10 Intra, Main 4:2:2 10, Main 4:2:2 10 Intra up to 5.1 High Tier
Audio encoding and decoding	NDI Audio; AAC-LC, Opus, G.711 a-Law/u-Law; other software expansion
USB	1*USB3.0 (type A) 1*USB3.0 (type C)
Human-computer interaction	1.96〞LCD screen, KILOVIEW Magic Rotor
TF storage	Support TF card for recording, capacity up to 2TB
Tally	Built-in OLED panel available as front/rear Tally
Power	DC 12V （5.5/2.5）or PoE
NDI	Support both NDI and NDI|HX 2.0 (Note: It will support NDI|HX 3.0 in the near future)
Typical Bitrates	SpeedHQ (NDI CODEC): 4Kp60: 250Mbps, 1080p60: 132Mbps, 1080p30/1080i60: 112Mbps, 720p60: 105Mbps 480i60: 62.5MbpsAVC (H.264): Adjustable from 1Mbpsto 120Mbps. >24Mbps (4Kp60); >10Mbps(1080p60).HEVC (H.265): Adjustable from 1Mbps to 120Mbps. >15Mbps (4Kp60); >6Mbps(1080p60).
Recording	TF card available for local storage to .mov filles. Support remote recording with KILOVIEW Recorder System, ensuring reliable recording together with Kiloview Smart Recording technology (TF card required).
Voice intercom	Support voice intercom by USB headset between devices directly, or with KILOVIEW Intercom server.
PTZ	Support PTZ control through USB to serial RS232/485/422; or PTZ control over IP with different protocols, no extra cable required
Input with Web Cam via USB	Support video input from Web Cam via USB 3.0 (Note: license required)
Connection with PC via USB	Support connection with PC via USB Type-C, as a video capture device (Note: license required)
Management	Web UI and remote management with KILOVIEW KiloLink Server
Firmware update	Firmware upload by Web UI and remote upgrade with KILOVIEW Kilolink Server

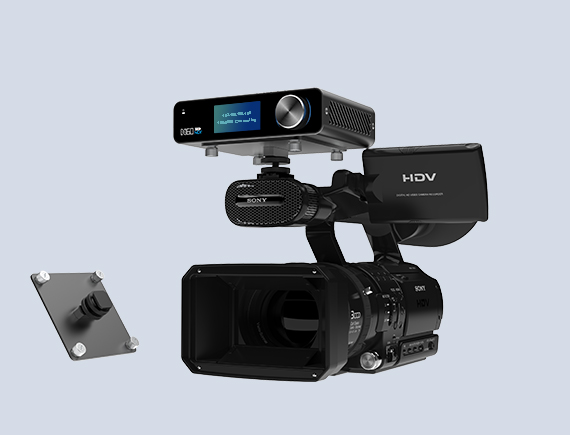

Mounting	Support hot-shoe mounting and V-mounting
Power Consumption	16W Max
Certificates	CE/ FCC/ROHS
Dimension	135*98*35mm
