| HARDWARE | |

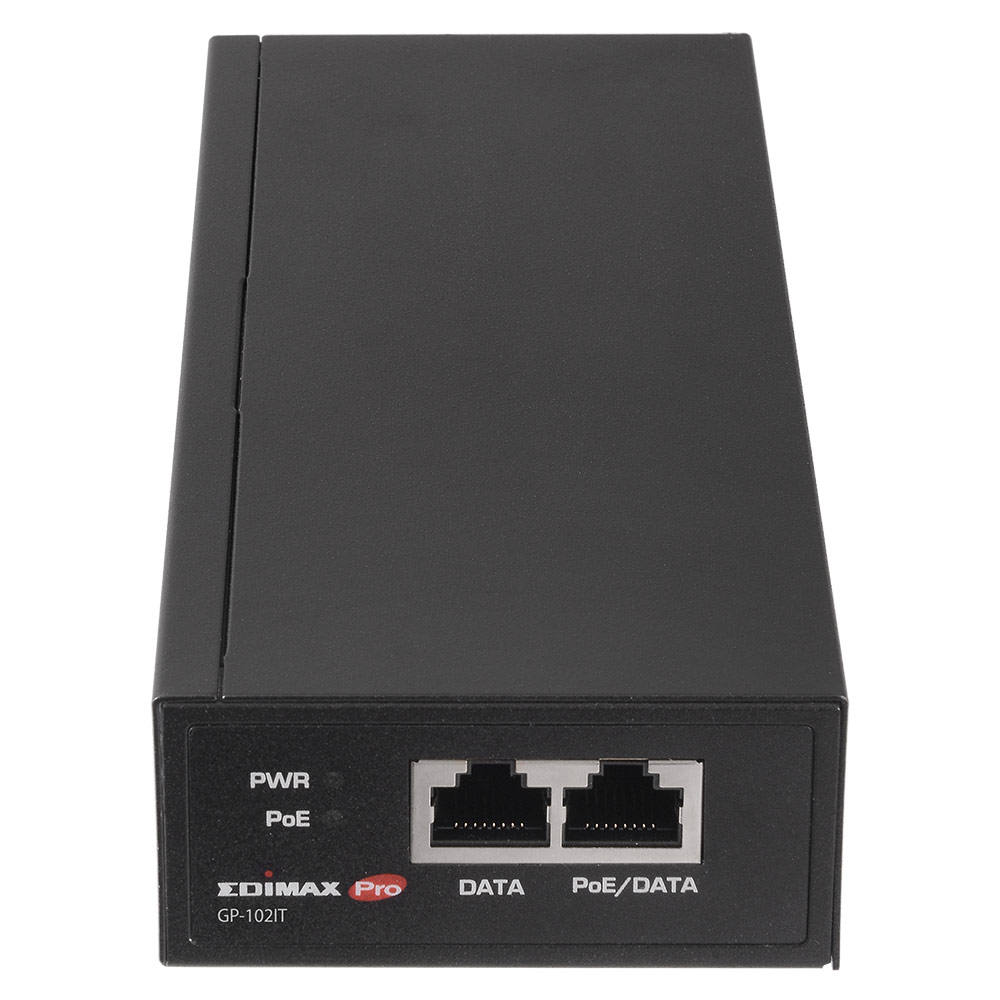

| Ports | 1 x RJ-45 10/100/1000Base-T input ports 1 x RJ-45 10/100/1000Base-T PoE output ports |
| LED Indicators | AC Power (PWR) PoE Power |
| Power Input | 100-240V AC, 50-60Hz, 1.5A |

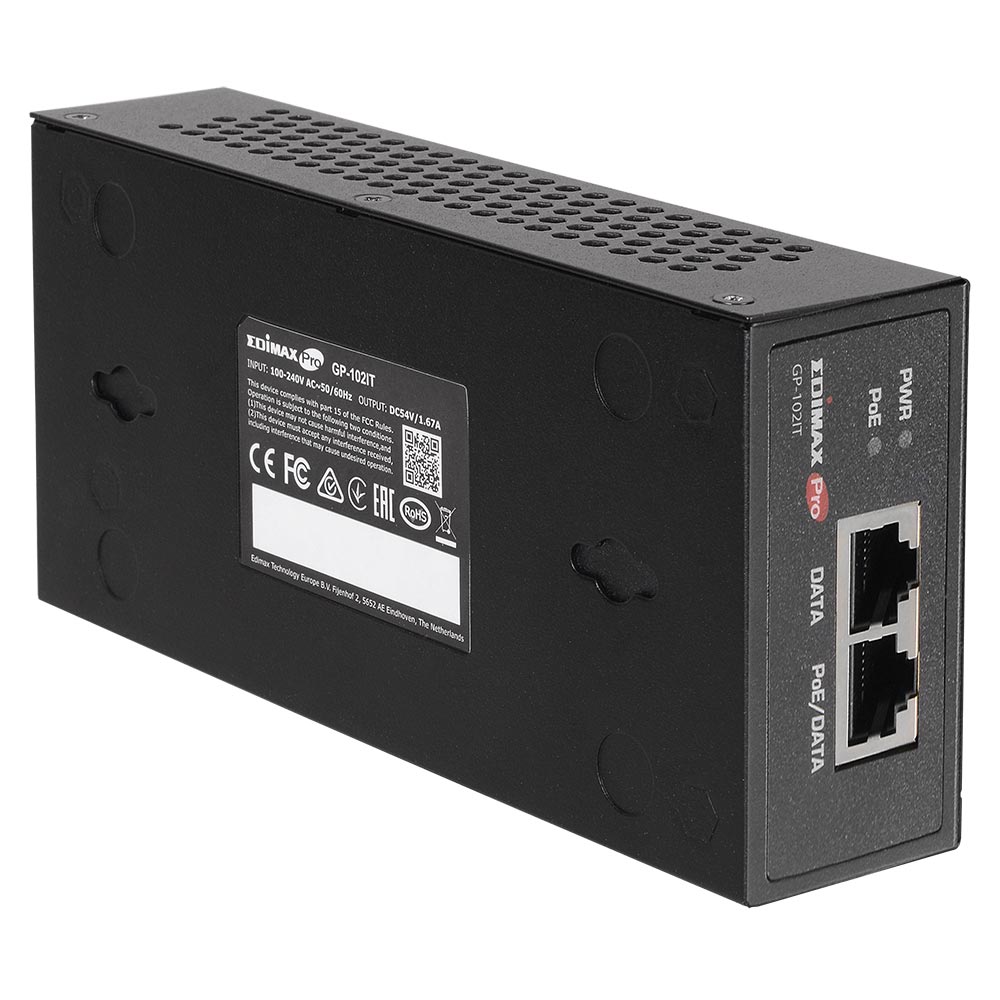

| Mounting | Desktop/Wall |

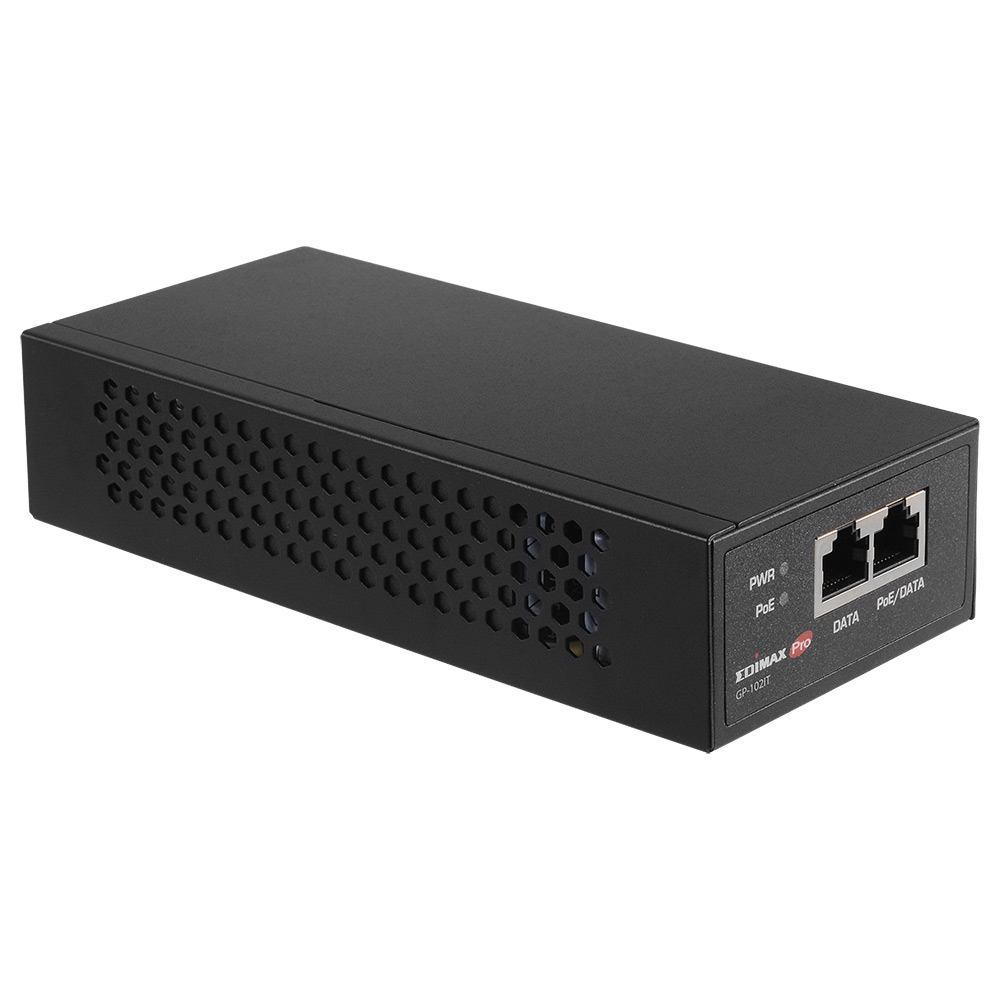

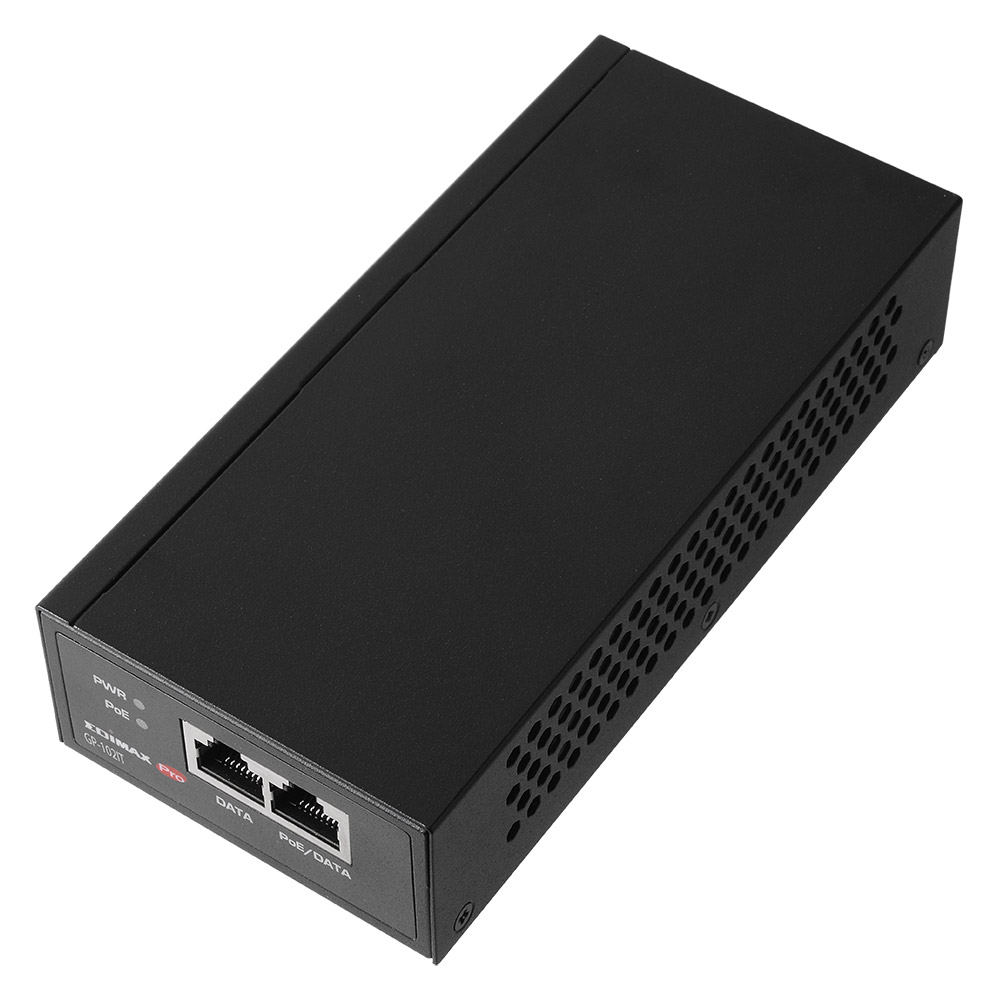

| Housing | Metal |
| Fan | Fanless |
| Dimension | 73(W) x 154(D) x 36(H)mm |
| Weight | 568g |
| POWER OVER ETHERNET | |

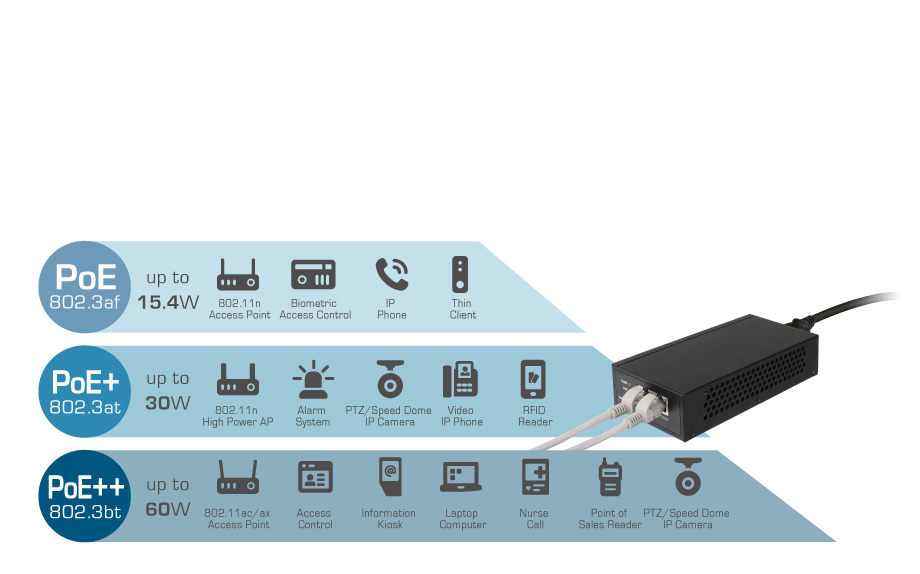

| Standard | IEEE 802.3af (PoE) IEEE 802.3at (PoE+) IEEE 802.3bt (PoE++) |
| Power Output | DC 54V/1.67A, up to 60W |
| Pin Assignment | Pins 1,2, 4, 5 (+), Pins 3, 6, 7,8 (-) Output Power Voltage: 54V DC |
| Short Circuit Protection | Yes |
| Over Circuit Protection | Yes |
| PoE PD Auto Detection | Yes |
| OTHERS | |
| Standard | IEEE 802.3 10BaseT Ethernet IEEE 802.3u 100BaseTX Fast Ethernet IEEE 802.3ab 1000BaseT Gigabit Ethernet IEEE 802.3af Power Over Ethernet (PoE) IEEE 802.3at Power Over Ethernet Plus (PoE+) IEEE 802.3bt 4-Pair Power Over Ethernet Type 3 |
| Certification | CE, FCC |
| Environmental Condition | Operating Temperature: 32~104°F (0~40°C) Storage Temperature: -4~158°F (-20~70°C) Operating Humidity: 10~90% (NonCondensing) Storage Humidity: 5~90% (NonCondensing) |
| Package Content | Injector Quick Installation Guide Power Cord Rubbert Pads Screws |
