Blackmagic Micro Converter BiDirectional SDI/HDMI wPSU

Dostępność:Dostępne od ręki
Cena:330,00360,00 zł

Blackmagic Micro Converter BiDirectional SDI/HDMI z ZASILACZEM






Micro Converter BiDirectional SDI/HDMI - dwukierunkowy konwerter pozwalający na konwersję SDI do HDMI i HDMI do SDI w tym samym czasie. Sygnał w każdym kierunku konwersji może być w innym formacie SD lub HD, a więc są to dwa konwertery w jednym.

Wejście 3G-SDI automatycznie wykrywa wszystkie formaty SD i HD do 1080p60 ze wsparciem Level A oraz Level B.

Do zasilania oraz aktualizacji firmware służy port Micro USB.

W zestawie znajduje się zasilacz AC 100-240V z kompletem międzynarodowych wtyczek.



Micro Converter BiDirectional SDI/HDMI is the world’s smallest broadcast quality bidirectional video converter! Now you can simultaneously convert SDI to HDMI and HDMI to SDI in any combination of SD and HD formats up to 1080p60 at the same time! Each conversion direction can be a different SD or HD video standard, so it’s like getting two converters in one! The multi-rate 3G-SDI input and output connections are compatible with virtually all professional broadcast equipment, including Level A and B devices. It even automatically detects all SD and HD formats! The strong metal design is perfect for live production and broadcast. Plus, it’s small enough to be hidden and used anywhere. It can even be powered via USB!

Pocket sized broadcast quality converters
Blackmagic Micro Converters are so small you can use them anywhere! Whether you’re carrying one in your laptop bag or in your outside broadcast van and road cases, they’re professional, broadcast quality converters that can be easily hidden so the audience never sees them. They’re perfect for use on set in broadcast news, at live events that have screens and cameras all around, or even in episodic television shows feeding big screen televisions that are part of the set.

Miniaturized Design
Unlike other small SDI converters, Blackmagic Micro Converters feature the highest quality broadcast technology, miniaturized into a proper metal enclosure so you get a professional design you can trust! You get full size professional 3G-SDI connections, HDMI and more. The converters include two LED status indicators to confirm power and video signal. Blackmagic Micro Converters include a USB connection for power. That means you can power it from from any USB connection on a television or a laptop computer. You can also buy Blackmagic Micro Converters with an AC power supply that includes 4 different AC socket adapters for plugging it into outlets.

Broadcast Quality
Whether you’re working in SD or HD, Micro Converters feature the same broadcast quality 10-bit video processing found in full size converters, so you always get professional industrial strength SDI signals. Blackmagic Micro Converters work with 8 and 10-bit broadcast quality video in all SD and HD formats up to 1080p60. Full support is included for embedded audio and closed captioning. With Blackmagic Micro Converters, you get a truly professional converter that’s perfectly suited for high end broadcast applications.

SDI Re-clocking
Blackmagic Micro Converters include built in SDI re-clocking on the 3G-SDI input. The SDI re-clocking will regenerate the SDI video input, reduce SDI jitter and improve SDI eye pattern before the signal gets to the converter’s processing. This allows longer cable lengths because even degraded SDI signals can still be used. Other small, cheap converters often leave out important features such as this, making them unreliable for broadcast use. Blackmagic Micro Converters don’t suffer from these problems because they are a true professional design!

Full Size Connections
Even though they’re incredibly small, Blackmagic Micro Converters feature full size 3G‑SDI and HDMI connections! The SDI connections are multi-rate, making them compatible with SD and HD-SDI equipment. For maximum compatibility, micro converters support both level A and level B 3G-SDI devices. Micro Converter SDI to HDMI also includes an SDI input loop through connection. Micro Converter HDMI to SDI features two 3G-SDI outputs, so you can connect it to multiple devices such as switchers, routers, monitors and more.

USB or DC Power
Blackmagic Micro Converters are powered via the same micro USB connection that’s used on smartphones so you can use any USB device or any smartphone charger to power the converters! You can also purchase Micro Converters with an AC power supply that supports 110 to 240V AC and comes with 4 different AC socket adapters so you can plug them into outlets anywhere in the world. That’s perfect for when you’re doing international work! You can even use smartphone chargers and rechargeable battery packs to power micro converters on set. With so many easy to use power solutions, you’ll never be without a power supply again!

Delivery Contents:
• Micro Converter SDI to HDMI wPSU

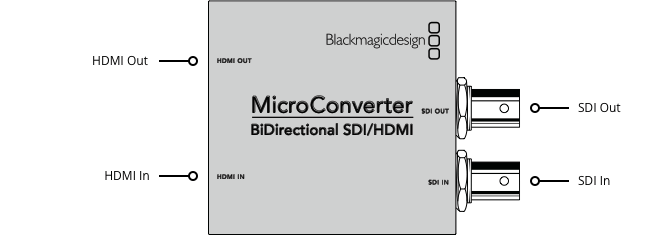

Connections

SDI Video Inputs
1 x SD, HD or 3G-SDI.
SDI Video Outputs
Automatically matches the SD, HD or 3G-SDI HDMI video input.
HDMI Video Inputs
HDMI Type A in.
HDMI Outputs
HDMI Type A out.
Multi Rate Support
Auto detection of SD or HD.
Updates, Configurations and Power
Micro USB.
Reclocking
Yes[Micro Converter BiDirectional SDI/HDMI wPSU]Standards
SDI Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M
SDI Video Rates
SDI video connections are switchable between standard definition and high definition, and user selectable level A and B via setup utility.
SDI Color Precision
4:2:2
SDI Color Space
YUV
SDI Auto Switching
Automatically detects SD, HD and 3G-SDI
HDMI Video Standards
525i29.97 NTSC, 625i25 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
HDMI Color Precision
4:2:2
HDMI Color Space
YUV

Copy Protection

HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Standards

Software Control
Mac and Windows™ software via micro USB.
Internal Software Upgrade
Via micro USB.
Operating Systems[Mac Icon]macOS 10.12 Sierra,
macOS High Sierra 10.13 or later.[Windows Icon]Windows 8.1 or Windows 10.


Settings Control
Via software utility.

Power Requirements

+5V universal power supply included with international socket adapters for all countries.
Power Consumption
2.5W
Operational Voltage Range
4.4 to 5.25V DC
Environmental Specifications
Operating temperature
0° to 40° C (32° to 104° F)
Storage temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing
Physical Specifications[Micro Converter BiDirectional SDI/HDMI wPSU]What's Included
Micro Converter BiDirectional SDI/HDMI
+5V universal power supply with international socket adapters
