BirdDog Studio NDI Encoder

Nr katalogowy:BDSTUM01
Dostępność:Na zamówienie
Do 30 września 2018 r. Każdy zarejestrowany użytkownik NDI BirdDog Studio
może pobrać bezpłatnie aplikację Birddog Comms o wartości 2250 PLN!

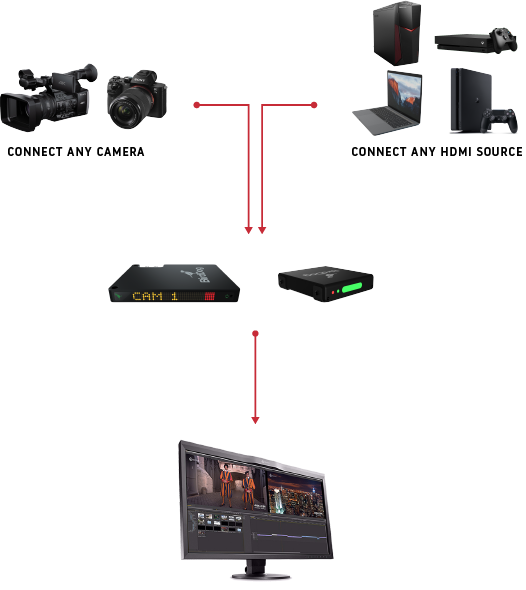

BirdDog Studio enables your existing cameras to be included into a new IP workflow for your live productions. Once you convert your HDMI or SDI signal to IP the possibilities of live productions are magnified. Any network connection becomes a live video input into your switcher. Convert your baseband SDI or HDMI to NDI and take full advantage of flexible IP networks. No need to run long SDI cables or purchase expensive video routers, simply access your live video in real time anywhere on your network. BirdDog Studio can accept industry-standard HD-SDI or consumer grade HDMI inputs making it universally compatible with video equipment presented to a production.
Configurable Displays allow either the director or cameraman to quickly and easily identify the camera or on-screen talent to be aware of which camera is currently live to air via the bright multi-color LED display. BirdDog Studio can display Tally onbaord and externally via Tally out. Due to the superior NDI integration it can provide both Program and Preview tally indicators. Simply set the display to be full screen Tally or split screen to show both program and preview. It has your bases covered when it comes to power. BirdDog Studio can accept power input form the Ethernet cable via PoE technology. Don't have a PoE network infrastructure? No worries, simply power via DC or V/Gold-mount battery plate optional accessories with power pass-through (coming soon). Control and configure multiple BirdDog Studio devices through our admin panel which is accessible via a web browser on both mobile devices and desktop. SDI and HDMI outputs are always live allowing you to convert from SDI to HDMI and vice versa. Connect a monitor to BirdDog Studio or simply use to loop out to other gear.

  • SDI to NDI with loop out
  • HDMI to NDI with loop out
  • Cross convert SDI and HDMI
  • Bi-colour tally. Program and preview
  • DC and Power over Ethernet (PoE)
  • Web and Mobile based fleet management
  • V-Mount and Anton Bauer mounting options with power pass throug

Video Formats

• (HD) 1080p 23.98, 25, 29.97, 50, 59.94
• (HD) 1080i 25, 29.97
• (HD) 720p 50, 59.94
• (SD) 525i, 625i

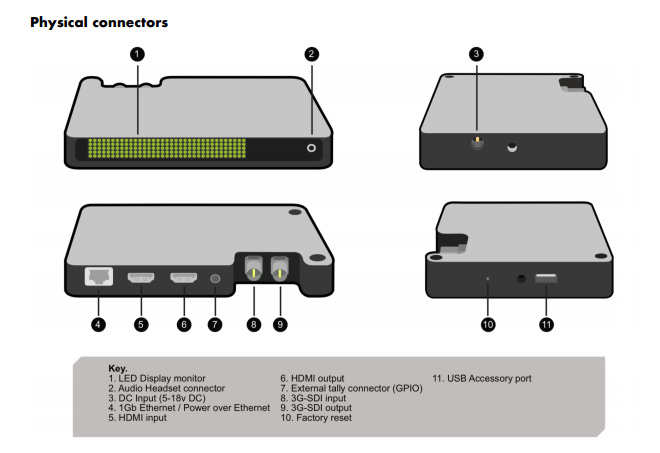

Video Input

• 1 x 3G-SDI, SMPTE-259/292/296/424
(Level A / Level B)
• 1 x HDMI Standard Type A connector
HDMI v1.4a, RGB or YCbCr

Video Output

• 1 x 3G-SDI, SMPTE-259/292/296/424 (Level A)
• 1 x HDMI Standard Type A connector
• HDMI v1.4a, RGB or YCbCr

Audio Digital

• 2-Channel, 24-bit SDI embedded audio,
48 kHz sample rate, synchronous
• 2-Channel, 24-bit HDMI embedded audio,
48 kHz sample rate, synchronous

Audio Analog

• 3.5mm Microphone headset input / output

Video Codec Support

• Realtime, ultra-low latency, full-bitrate NDI


• Internal 35×5 bi-colour LED display for
information and tally indication

Network Interface

• 10/100/1000 Ethernet (RJ-45) with PoE
(Power over Ethernet)
• Embedded web configuration panel for
control and firmware updates

User Interface Controls

• Network settings
• Video settings
• Tally settings
• Audio and Comms settings

External Tally

• 3.5mm 2 position +5v tally connector

Size (w x d x h)

• 150mm x 105mm x 21mm


• 0.3kg


• 100-240V, 50/60 Hz Universal Input, +5-18V
DC7W Max
• Power over Ethernet (PoE) 802.3af/at

Item Includes:

BirdDog Studio
Universal AC adapter
D-Tap to 6mm DC cable
quickstart guide
